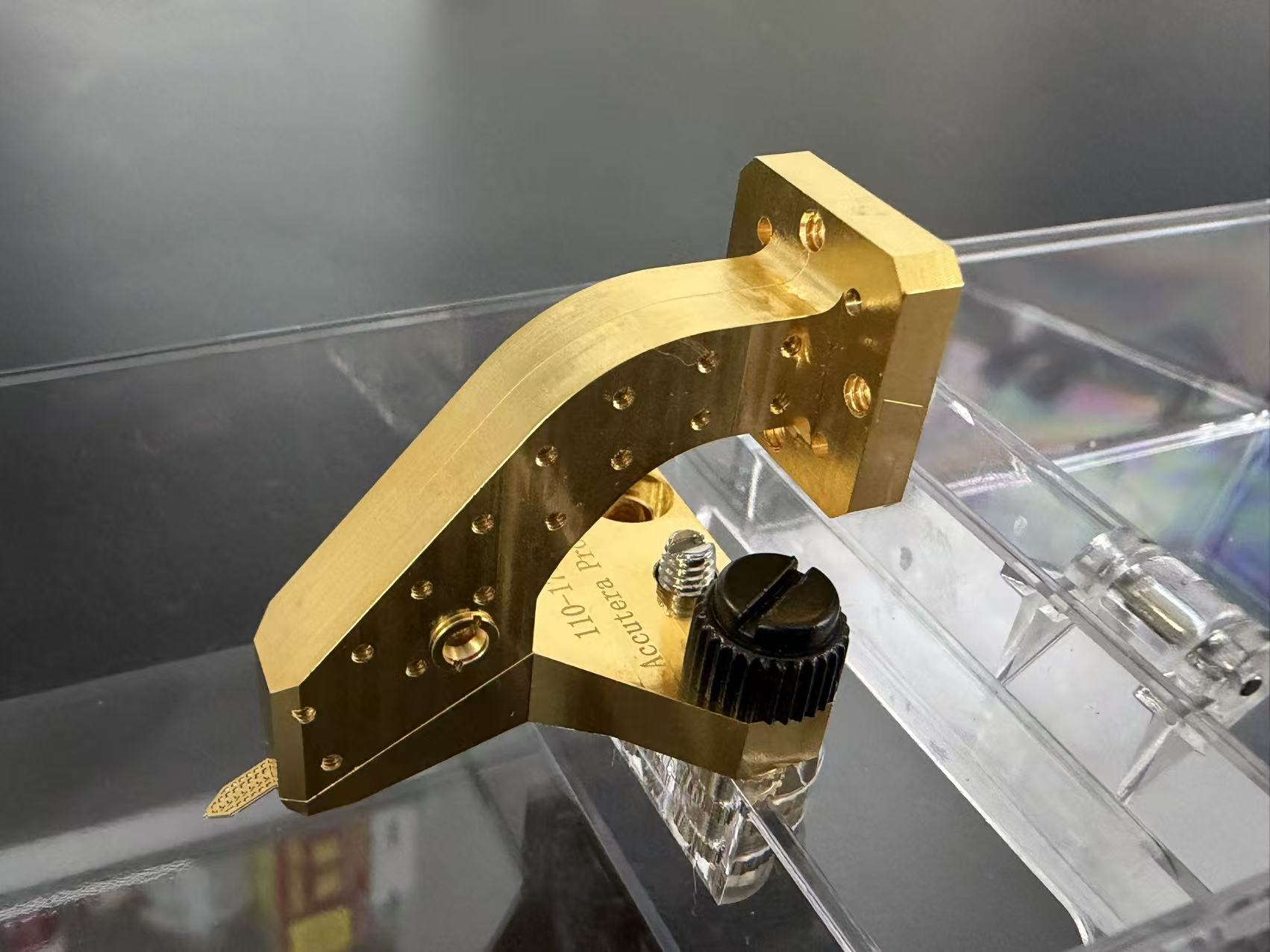

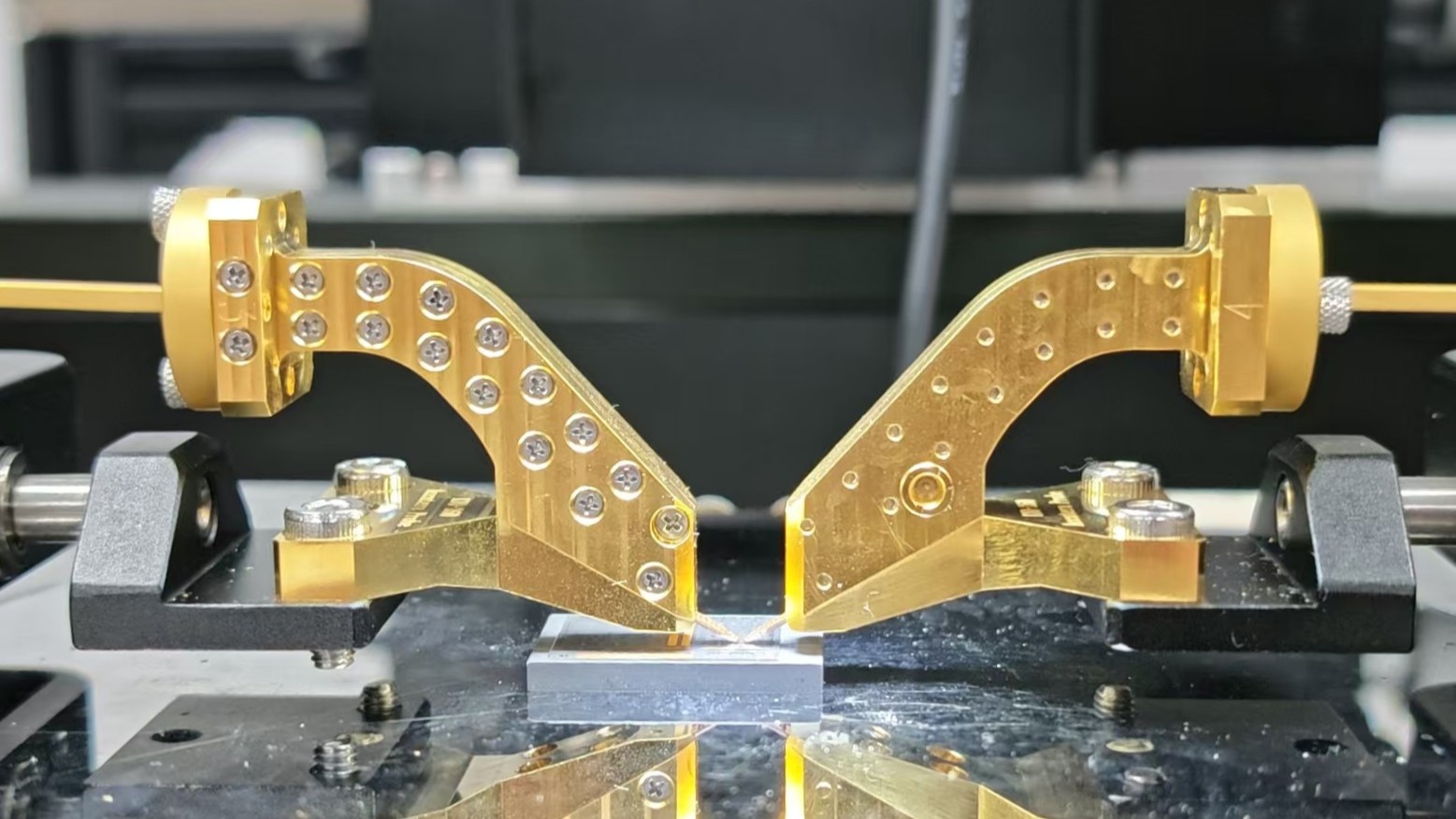

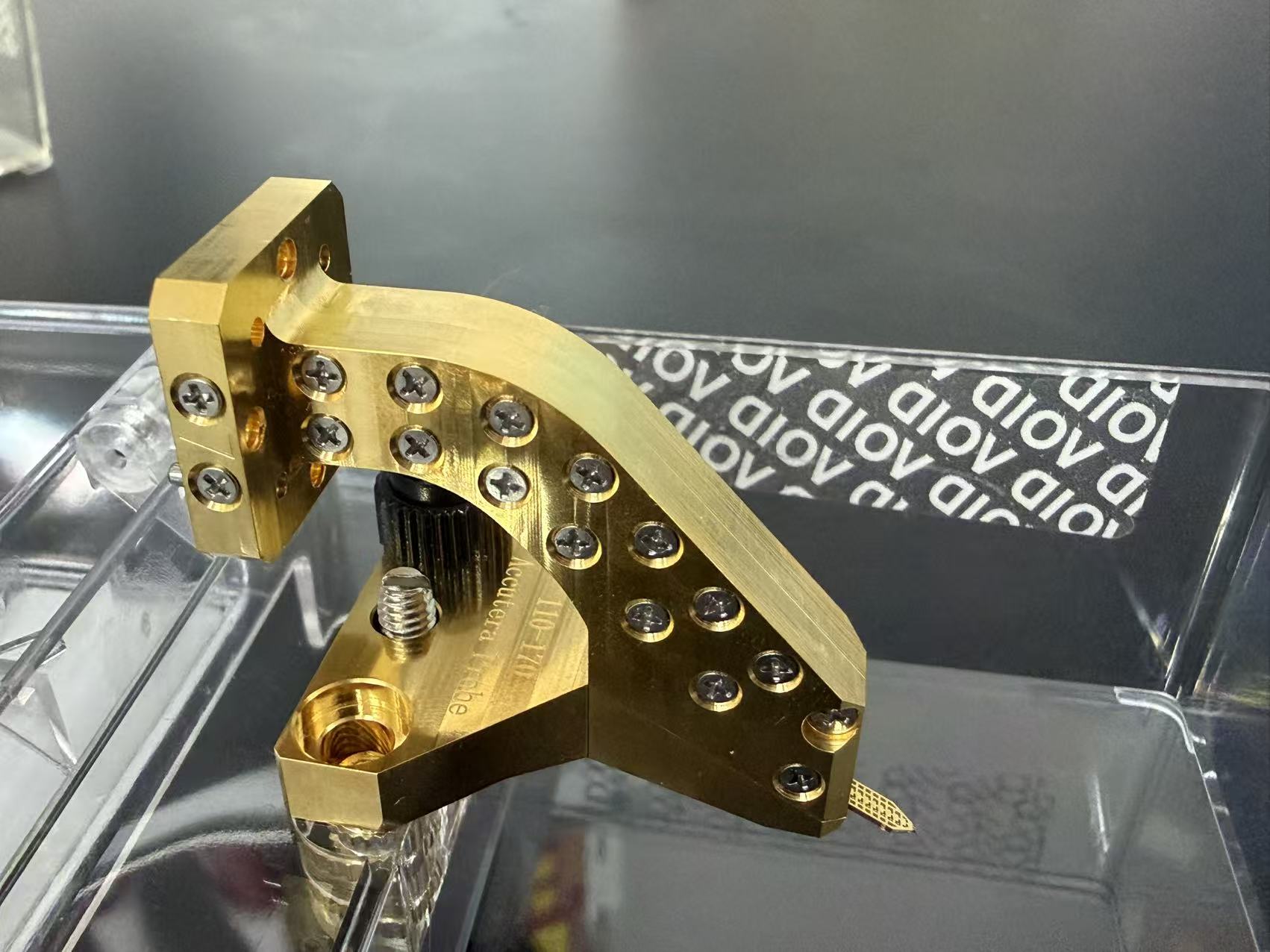

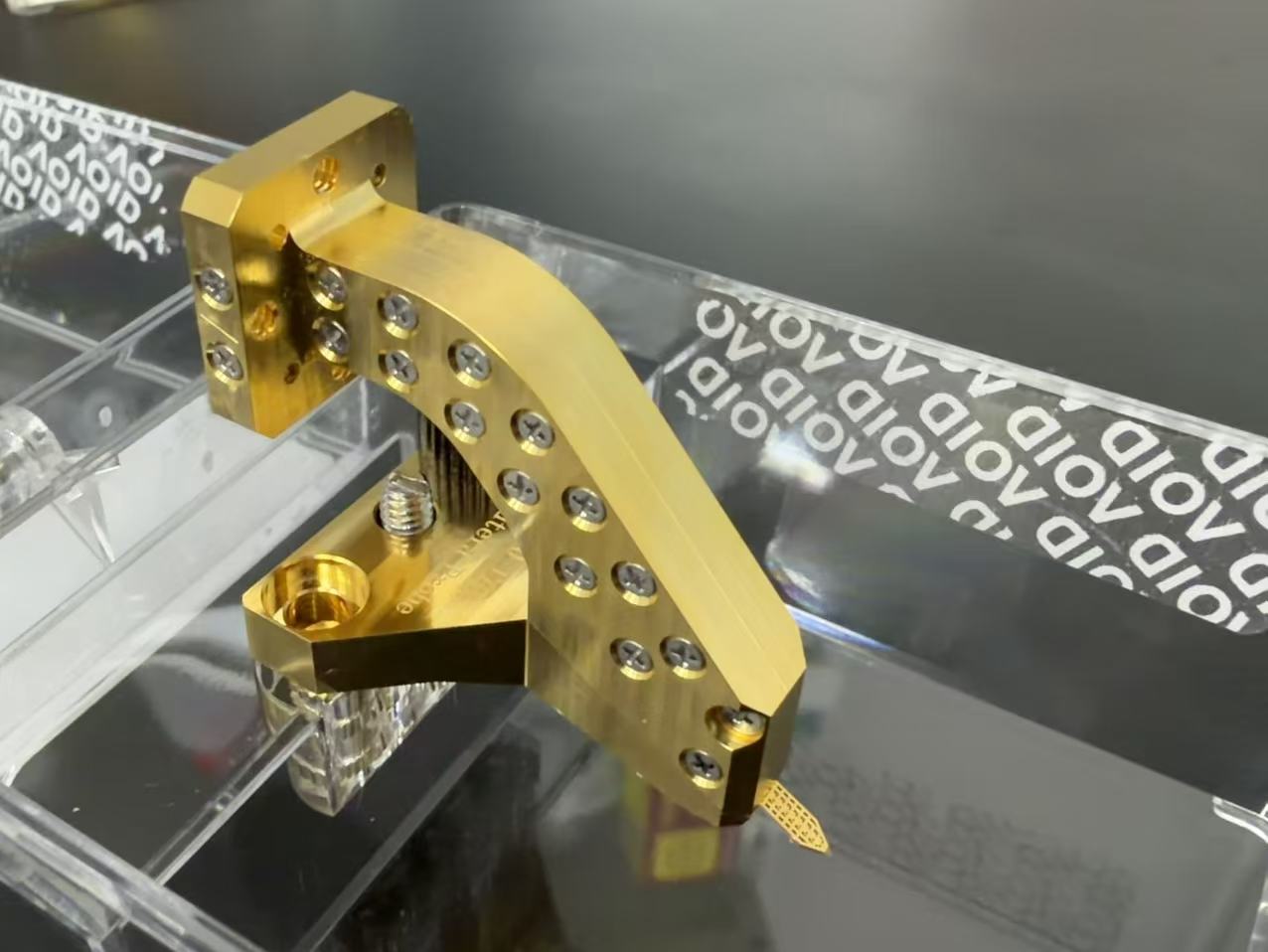

Single-Ended Waveguide Probe
High-performance waveguide probe for millimeter-wave and terahertz measurements with low loss, high repeatability and wide bandwidth.
- Frequency Range75 GHz – 500 GHz
- Interface TypeWR-3, WR-4, WR-5, WR-6, WR-8, WR-10
Product Overview
Leveraging the deep R&D heritage of Xi'an Jiaotong University, our waveguide probes are designed for high-frequency measurements with precision manufacturing that ensures perfect matching between the probe and the waveguide interface. Ideal for on-wafer RF/microwave testing, optoelectronic device characterization, and high-speed interconnect signal integrity verification. Each probe is rigorously calibrated for outstanding repeatability and durability, with a range of standard options and customization services to meet diverse customer needs.
The series uses low-loss dielectric materials to effectively reduce insertion loss and improve measurement accuracy. Its unique coplanar waveguide design maintains stable electrical performance across a wide bandwidth, making it an ideal choice for research institutions and production lines.
Key Features
Wide Bandwidth
Covers 75 GHz to 500 GHz to meet a wide range of high-frequency test needs.
Low Insertion Loss
Premium dielectric materials keep insertion loss below 5 dB.
High Repeatability
Contact design ensures consistent results across measurements, with repeatability better than 0.05 dB.
Durable Design
Service life exceeding 100,000 cycles.
Robust Structure
Allows larger over-travel for greater fault tolerance.
Customization
Frequency ranges and interface configurations can be customized to customer requirements.
More Information
| Model | Frequency | Pitch | Typical Insertion Loss | Typical Return Loss |
|---|---|---|---|---|
| 75-110-GSG-150 | 75-110 GHz | 150 µm | < 1.5 dB | < -15 dB |
| 110-170-GSG-100 | 110-170 GHz | 100 µm | < 2.0 dB | < -14 dB |
| 140-220-GSG-100 | 140-220 GHz | 100 µm | < 2.5 dB | < -14 dB |
| 170-260-GSG-50-T | 170-260 GHz | 50 µm | < 5 dB | < -15 dB |
| 220-330-GSG-50-T | 220-330 GHz | 50 µm | < 4.5 dB | < -13 dB |

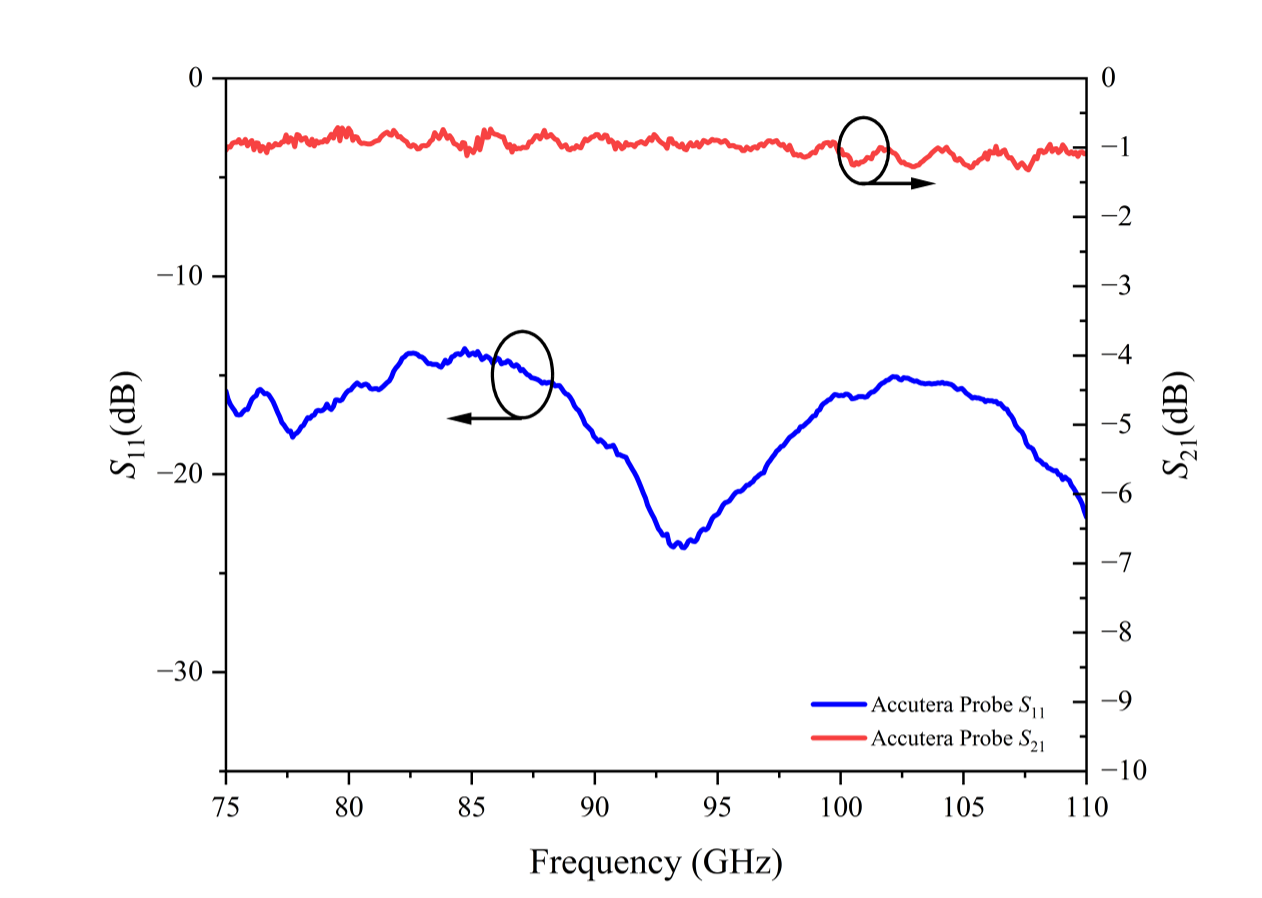

Click a model in the table to view its S-parameters
For more information, please download:
Datasheet
Detailed electrical specifications, mechanical dimensions and interface definitions.
Download PDF
